Snowflake

This guide provides the necessary steps to set up a Snowflake OAuth integration, enabling the connection of your Snowflake account to the Wiv platform.

Quick Start Prerequisites

• Account Identifier (e.g., gbc79660.us-east-1)
• Client ID (from your OAuth security integration)
• Client Secret (from your OAuth security integration)
• Service User credentials (WIV_SERVICE_USER)

Follow the steps below to retrieve these values and configure the integration.

Prerequisites

• A Snowflake account with ACCOUNTADMIN role (or a role with CREATE INTEGRATION privilege)
• Access to Snowflake SQL interface (Snowsight or SnowSQL)

Step 1: Create Service User and Role

Create a dedicated service user and role for the Wiv integration. This isolates Wiv access from your personal accounts and provides a clean audit trail.

1.1 Create the Role

-- Create a dedicated role for Wiv
CREATE ROLE IF NOT EXISTS WIV_OAUTH_ROLE;

1.2 Create the Service User

-- Create the service user
CREATE USER IF NOT EXISTS WIV_SERVICE_USER
    PASSWORD = 'YourSecurePassword123!'
    LOGIN_NAME = 'WIV_SERVICE_USER'
    DISPLAY_NAME = 'Wiv Service Account'
    DEFAULT_ROLE = WIV_OAUTH_ROLE
    DEFAULT_WAREHOUSE = COMPUTE_WH
    MUST_CHANGE_PASSWORD = FALSE
    COMMENT = 'Service account for Wiv OAuth integration';


-- Grant the role to the user
GRANT ROLE WIV_OAUTH_ROLE TO USER WIV_SERVICE_USER;

Important: Store the password securely. You will need it when authorizing the OAuth connection.

1.3 Grant Warehouse Access

-- Grant warehouse usage (required to run queries)
GRANT USAGE ON WAREHOUSE COMPUTE_WH TO ROLE WIV_OAUTH_ROLE;

Step 2: Configure Access Permissions

Grant the WIV_OAUTH_ROLE access to the specific databases, schemas, and objects needed.

Option A: Access to Specific Tables

-- Grant usage on database and schema
GRANT USAGE ON DATABASE your_database TO ROLE WIV_OAUTH_ROLE;
GRANT USAGE ON SCHEMA your_database.your_schema TO ROLE WIV_OAUTH_ROLE;


-- Grant SELECT on specific tables
GRANT SELECT ON TABLE your_database.your_schema.cost_data TO ROLE WIV_OAUTH_ROLE;
GRANT SELECT ON TABLE your_database.your_schema.usage_metrics TO ROLE WIV_OAUTH_ROLE;

Option B: Access to Specific Views

-- Grant usage on database and schema
GRANT USAGE ON DATABASE analytics_db TO ROLE WIV_OAUTH_ROLE;
GRANT USAGE ON SCHEMA analytics_db.reporting TO ROLE WIV_OAUTH_ROLE;


-- Grant SELECT on specific views
GRANT SELECT ON VIEW analytics_db.reporting.cost_summary_view TO ROLE WIV_OAUTH_ROLE;

Option C: Access to All Objects in a Schema

-- Grant usage on database and schema
GRANT USAGE ON DATABASE your_database TO ROLE WIV_OAUTH_ROLE;
GRANT USAGE ON SCHEMA your_database.your_schema TO ROLE WIV_OAUTH_ROLE;


-- Grant SELECT on all existing tables and views
GRANT SELECT ON ALL TABLES IN SCHEMA your_database.your_schema TO ROLE WIV_OAUTH_ROLE;
GRANT SELECT ON ALL VIEWS IN SCHEMA your_database.your_schema TO ROLE WIV_OAUTH_ROLE;


-- Grant SELECT on future tables and views (auto-grant for new objects)
GRANT SELECT ON FUTURE TABLES IN SCHEMA your_database.your_schema TO ROLE WIV_OAUTH_ROLE;
GRANT SELECT ON FUTURE VIEWS IN SCHEMA your_database.your_schema TO ROLE WIV_OAUTH_ROLE;

-- Verify all grants to the role
SHOW GRANTS TO ROLE WIV_OAUTH_ROLE;

Expected output should include:

• USAGE ON WAREHOUSE
• USAGE ON DATABASE
• USAGE ON SCHEMA
• SELECT ON TABLE/VIEW (for each object)

Step 3: Create OAuth Security Integration

CREATE SECURITY INTEGRATION WIV_OAUTH_INTEGRATION
    TYPE = OAUTH
    ENABLED = TRUE
    OAUTH_CLIENT = CUSTOM
    OAUTH_CLIENT_TYPE = 'CONFIDENTIAL'
    OAUTH_REDIRECT_URI = 'https://api.wiv.ai/integrations/snowflake'
    OAUTH_ISSUE_REFRESH_TOKENS = TRUE
    OAUTH_REFRESH_TOKEN_VALIDITY = 7776000
    BLOCKED_ROLES_LIST = ('ACCOUNTADMIN', 'ORGADMIN', 'SECURITYADMIN');

Step 4: Retrieve OAuth Credentials

Get Client ID

DESC SECURITY INTEGRATION WIV_OAUTH_INTEGRATION;

Look for OAUTH_CLIENT_ID in the output (e.g., sS9ikaxJmL7fnBkt09fcIeHUiJw=).

Get Client Secret

SELECT SYSTEM$SHOW_OAUTH_CLIENT_SECRETS('WIV_OAUTH_INTEGRATION');

Example output:

{
  "OAUTH_CLIENT_SECRET": "i4qOOF9Obf81+iNG9KQ1SSJj6i5JwhCgvX5aM307+3I=",
  "OAUTH_CLIENT_SECRET_2": "7UW6hG/EjYhm3LyiVazh3Oq9IRfBy9vKaXGqdic9h84=",
  "OAUTH_CLIENT_ID": "sS9ikaxJmL7fnBkt09fcIeHUiJw="
}

Use OAUTH_CLIENT_SECRET (primary) for the integration.

Step 5: Get Your Account Identifier

Your account identifier is found in your Snowflake URL.

Step 6: Configure Integration in Wiv Platform

1. Navigate to Integrations in the Wiv platform
2. Click Add Integration → Snowflake
3. Fill in the required fields:

4. Click Connect or Authorize

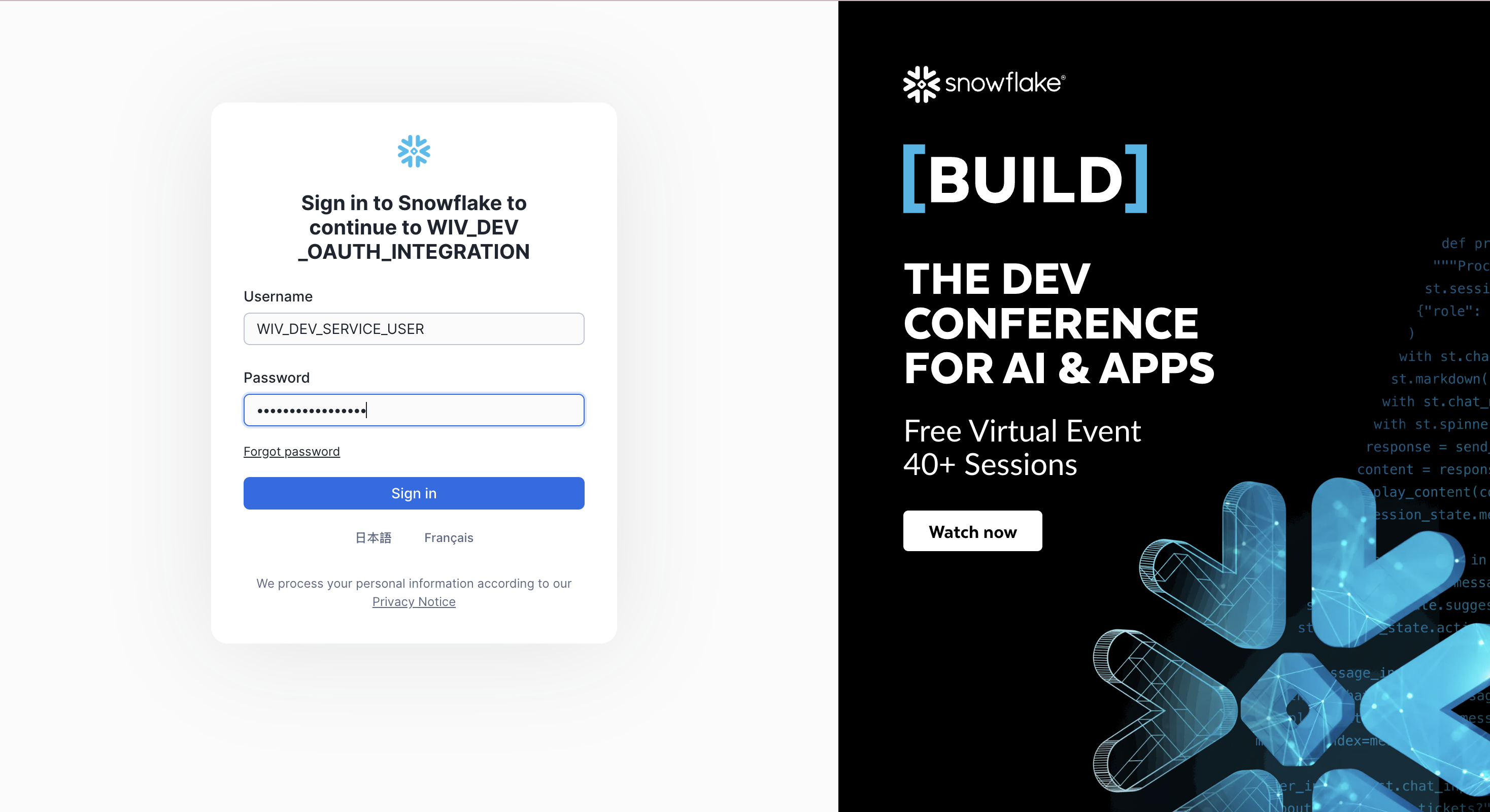

5. You will be redirected to Snowflake login page
6. Log in as the service user:
   • Username: WIV_SERVICE_USER
   • Password: (the password you set in Step 1.2)
7. Approve the authorization
8. You will be redirected back to Wiv

Important: Always log in as WIV_SERVICE_USER during the OAuth flow, not your personal account. This ensures all Wiv queries run under the service account with the correct permissions.

Step 7: Verify the Connection

After authorization, test the connection by running a simple query in Wiv to verify access to your data.

If you encounter errors, check:

1. The service user has WIV_OAUTH_ROLE as default role
2. The role has all required grants (database, schema, objects, warehouse)
3. The OAuth token is valid (re-authorize if expired)

Complete Setup Example

Here's a complete example for setting up Wiv access to a CUR (Cost and Usage Report) view:

-- ============================================================
-- STEP 1: Create Role and User
-- ============================================================
CREATE ROLE IF NOT EXISTS WIV_OAUTH_ROLE;


CREATE USER IF NOT EXISTS WIV_SERVICE_USER
    PASSWORD = 'WivSecure2025!'
    LOGIN_NAME = 'WIV_SERVICE_USER'
    DISPLAY_NAME = 'Wiv Service Account'
    DEFAULT_ROLE = WIV_OAUTH_ROLE
    DEFAULT_WAREHOUSE = COMPUTE_WH
    MUST_CHANGE_PASSWORD = FALSE;


GRANT ROLE WIV_OAUTH_ROLE TO USER WIV_SERVICE_USER;


-- ============================================================
-- STEP 2: Grant Permissions
-- ============================================================
GRANT USAGE ON WAREHOUSE COMPUTE_WH TO ROLE WIV_OAUTH_ROLE;
GRANT USAGE ON DATABASE PRD_EDW_INFOMART TO ROLE WIV_OAUTH_ROLE;
GRANT USAGE ON SCHEMA PRD_EDW_INFOMART.INFOMART1 TO ROLE WIV_OAUTH_ROLE;
GRANT SELECT ON ALL VIEWS IN SCHEMA PRD_EDW_INFOMART.INFOMART1 TO ROLE WIV_OAUTH_ROLE;
GRANT SELECT ON ALL TABLES IN SCHEMA PRD_EDW_INFOMART.INFOMART1 TO ROLE WIV_OAUTH_ROLE;
GRANT SELECT ON FUTURE VIEWS IN SCHEMA PRD_EDW_INFOMART.INFOMART1 TO ROLE WIV_OAUTH_ROLE;
GRANT SELECT ON FUTURE TABLES IN SCHEMA PRD_EDW_INFOMART.INFOMART1 TO ROLE WIV_OAUTH_ROLE;


-- ============================================================
-- STEP 3: Create OAuth Integration
-- ============================================================
CREATE SECURITY INTEGRATION WIV_OAUTH_INTEGRATION
    TYPE = OAUTH
    ENABLED = TRUE
    OAUTH_CLIENT = CUSTOM
    OAUTH_CLIENT_TYPE = 'CONFIDENTIAL'
    OAUTH_REDIRECT_URI = 'https://api.wiv.ai/integrations/snowflake'
    OAUTH_ISSUE_REFRESH_TOKENS = TRUE
    OAUTH_REFRESH_TOKEN_VALIDITY = 7776000
    BLOCKED_ROLES_LIST = ('ACCOUNTADMIN', 'ORGADMIN', 'SECURITYADMIN');


-- ============================================================
-- STEP 4: Retrieve Credentials
-- ============================================================
DESC SECURITY INTEGRATION WIV_OAUTH_INTEGRATION;
SELECT SYSTEM$SHOW_OAUTH_CLIENT_SECRETS('WIV_OAUTH_INTEGRATION');


-- ============================================================
-- STEP 5: Verify Setup
-- ============================================================
SHOW GRANTS TO ROLE WIV_OAUTH_ROLE;
DESC USER WIV_SERVICE_USER;

Troubleshooting

"Incorrect username or password" during OAuth login

• Verify the password was set correctly: ALTER USER WIV_SERVICE_USER SET PASSWORD = 'NewPassword123!';
• Try lowercase username: wiv_service_user
• Check user is not disabled: DESC USER WIV_SERVICE_USER;

"Database does not exist or not authorized"

• Verify role has USAGE on database: SHOW GRANTS TO ROLE WIV_OAUTH_ROLE;
• Check user's default role: DESC USER WIV_SERVICE_USER; (should show WIV_OAUTH_ROLE)
• Re-authorize the OAuth connection

"Access token is invalid or expired"

• Re-authorize the OAuth connection in Wiv to get fresh tokens
• Check OAUTH_REFRESH_TOKEN_VALIDITY hasn't expired (90 days default)

"Invalid client_id" or "Invalid client_secret"

• Copy credentials exactly, including trailing = signs
• Verify integration is enabled: DESC SECURITY INTEGRATION WIV_OAUTH_INTEGRATION;

Security Best Practices

Use Least Privilege

• Grant only SELECT on specific tables/views needed
• Use secure views to protect sensitive data
• Block privileged roles in the security integration

Credential Management

• Store Client Secret securely (never in code repositories)
• Rotate Client Secret periodically:

  ALTER SECURITY INTEGRATION WIV_OAUTH_INTEGRATION REFRESH OAUTH_CLIENT_SECRET;


Monitoring

• Review query history for WIV_SERVICE_USER regularly
• Set up alerts for unusual access patterns

Network Policies (Optional)

CREATE NETWORK POLICY wiv_network_policy
    ALLOWED_IP_LIST = ('your_allowed_ip_range');


ALTER SECURITY INTEGRATION WIV_OAUTH_INTEGRATION
    SET NETWORK_POLICY = wiv_network_policy;

Summary

Additional Resources

• Snowflake OAuth Documentation
• Snowflake Security Integration Reference
• Snowflake Access Control
